6W 12V 0.5A Mini Constant Voltage LED Driver With UL

Mini Constant Voltage LED Driver The mini LED Driver is one low cost, 6W 12Volt 500ma constant voltage mode single output AC/DC LED lighting Power Supply. This HS Code led driver is class 2 power rated (without FG pin), accepts 110VAC to 240VAC full range AC input voltage and adopts stable raw material purchasing. The led strip driver use square plastic case with IP20 level suitable for the entry-level LED applications. The Led Power Supplies also passed UL/cUL CE RoHS certifications.

  • Brand:

    QINX
  • Item No.:

    QXP-ZF120A-1200500
  • Input Voltage:

    100-240Vac
  • Working Mode:

     constant voltage
  • Power:

    6W
  • Size:

    490 x 235 x 145mm
  • Certification:

    UL CE FCC ROSH
Products description

6W 12V 0.5A Mini Constant Voltage LED Driver The mini LED Driver is one low cost, 6W 12Volt 500ma constant voltage mode single output AC/DC LED lighting Power Supply. This HS Code led driver is class 2 power rated (without FG pin), accepts 110VAC to 240VAC full range AC input voltage and adopts stable raw material purchasing. The led strip driver use square plastic case with IP20 level suitable for the entry-level LED applications. The Led Power Supplies also passed UL/cUL CE RoHS certifications.

Features

◆ Constant voltage design

◆ Square plastic case with IP20 level

◆ Universal AC input / Full range

◆ Protections: Short circuit / Over voltage / Over current

◆ Class II power (without earth pin)

◆ class 2 power unit

◆ Suitable for indoor LED lighting and moving sign applications

ModelQXP-ZF120A-1200450QXP-ZF120A-1200500QXP-GA-2400300
OutputDC Output Voltage12V12V24V
Output Voltage Tolerance+0.5%+0.5%+0.5%
Rated Output Current450mA500mA300mA
Output Current Range0~1A0-1A0~1A
Output Power5W6W6W
Ripple And Noise150mVp-p150mVp-p150mVp-p
DC Voltage Adjustable Range±0.5±0.5±0.5
Start, Rise, Hold Time200ms, 50ms, 20ms/110VAC
InputInput Voltage Range100-240V 50/60HZ
AC Input Current0.35A/110VAC
Efficiency80%82%83%
Impulse CurrentCold start current 30A / 110VAC
Leakage Current<0.5mA/110VAC
ProtectionOverload Protection110% – 135% of rated output power start overload protection
Protection ModeFold type current limit, automatic recovery after removal of abnormal load conditions
Environmental ScienceWorking Temperature And Humidity-10℃ ~ +60℃; 20% ~ 90% RH (please refer to load derate curve)
Storage Temperature And Humidity-20℃ ~ +85℃; 10% ~ 95% RH non condensing
Seismic Resistance10~ 500Hz, 2G 10min. / 1 cycle, duration 60min, each axis
SecurityPressure ResistanceInput-output room: 3.0kVac
Insulation ResistanceInput-output room: input and ground, output and ground: 100M ohms/ 500VDC

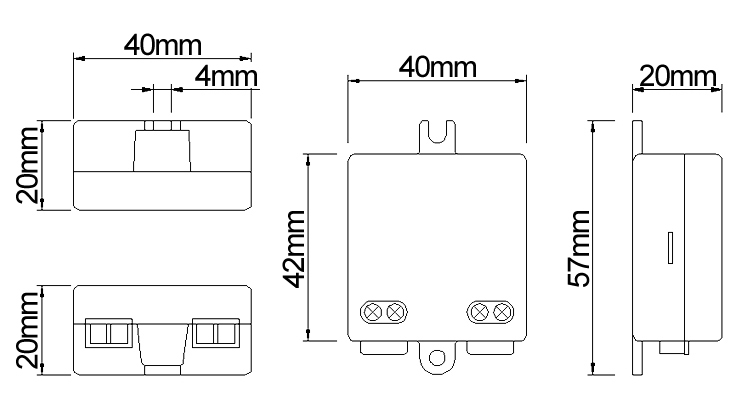

OtherWeight0.045kg; 490 x 235 x 145mm(L*W*H)
Packing200pcs
